Register and Manage Linux Servers with Azure Arc Tutorial
This tutorial walks through the process of registering a Linux server with Azure Arc and then assigning an Azure Policy to manage the server.
In this tutorial, I want to explore how to onboard a Ubuntu server to Azure using Azure Arc. The tutorial will walk you through registering the necessary Azure resource providers, registering your server in Azure by installing the Azure Arc agent and lastly assigning a governance policy to the server using Azure Policy.
Prerequisites
- An Ubuntu 22.04 server with outbound Internet access
- An active Microsoft Azure subscription
Register Azure resource providers
An Azure resource provider is a collection of REST operations that provide functionality for an Azure service.
To use Azure Arc-enabled servers, the following Azure resource providers must be registered in your subscription:
- Microsoft.HybridCompute
- Microsoft.GuestConfiguration
- Microsoft.HybridConnectivity
- Microsoft.AzureArcData (if you plan to Arc-enable SQL Servers)
To enable them you can use Azure PowerShell, Azure CLI or the Azure portal. We’re going to use Azure CLI this time.

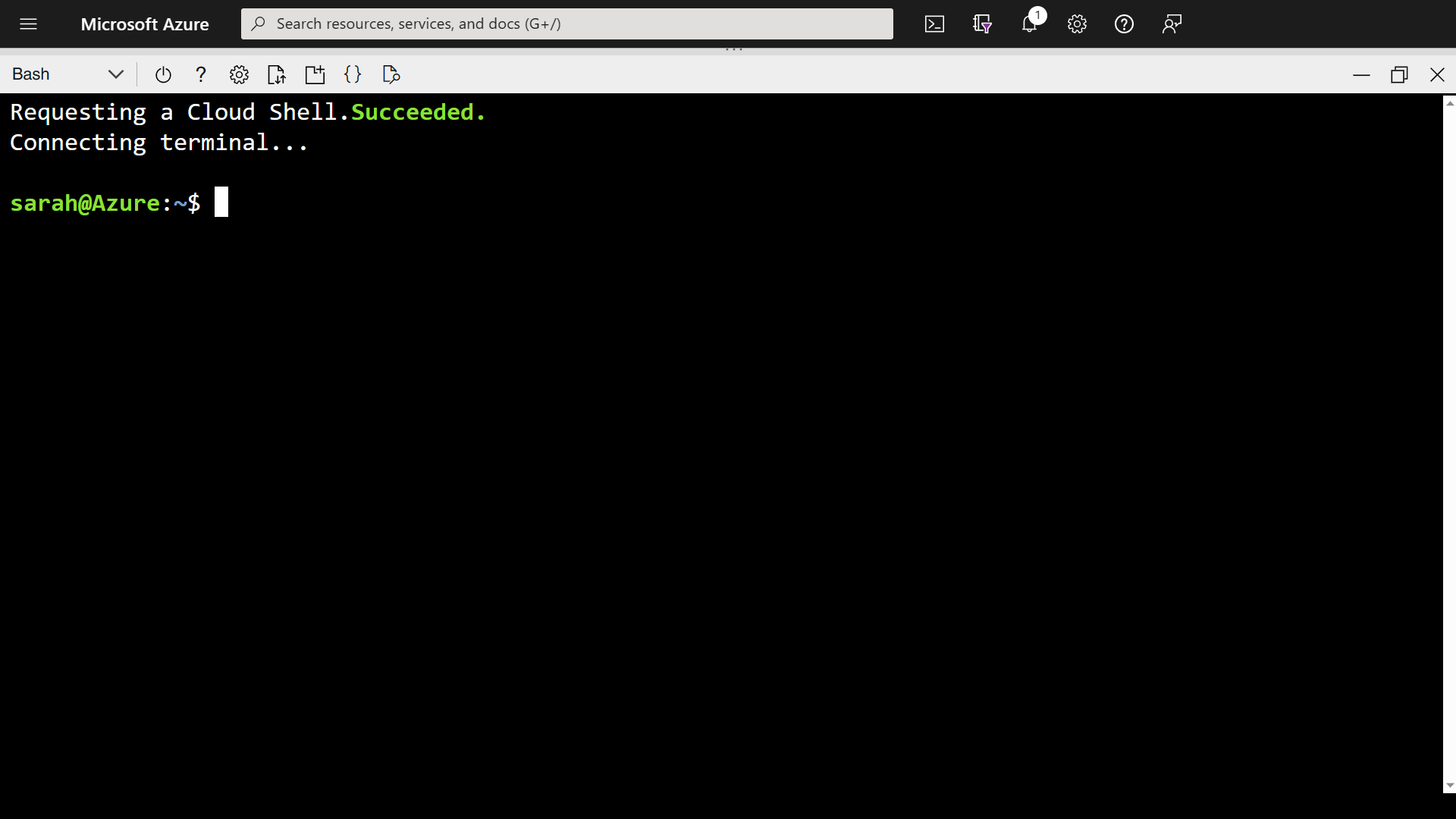

Head over to https://shell.portal.com

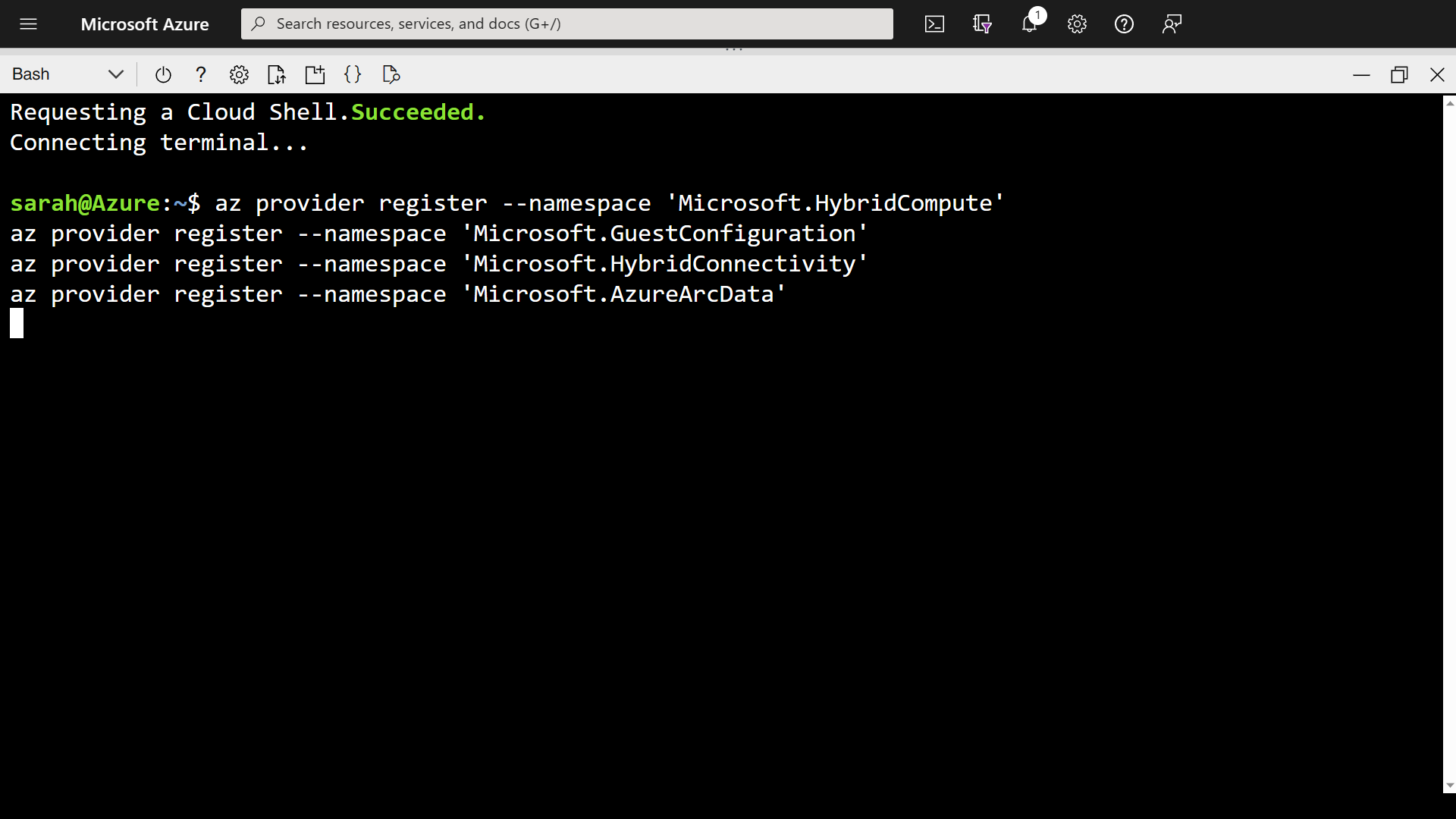

Paste the following code into your shell window:
az provider register --namespace 'Microsoft.HybridCompute'
az provider register --namespace 'Microsoft.GuestConfiguration'
az provider register --namespace 'Microsoft.HybridConnectivity'
az provider register --namespace 'Microsoft.AzureArcData'
Registering an Existing Ubuntu Server
From the Azure Portal, search for Azure Arc.
When the management blade launches, select Machines down the left hand side.
Then select Add/Create and then select Add a machine

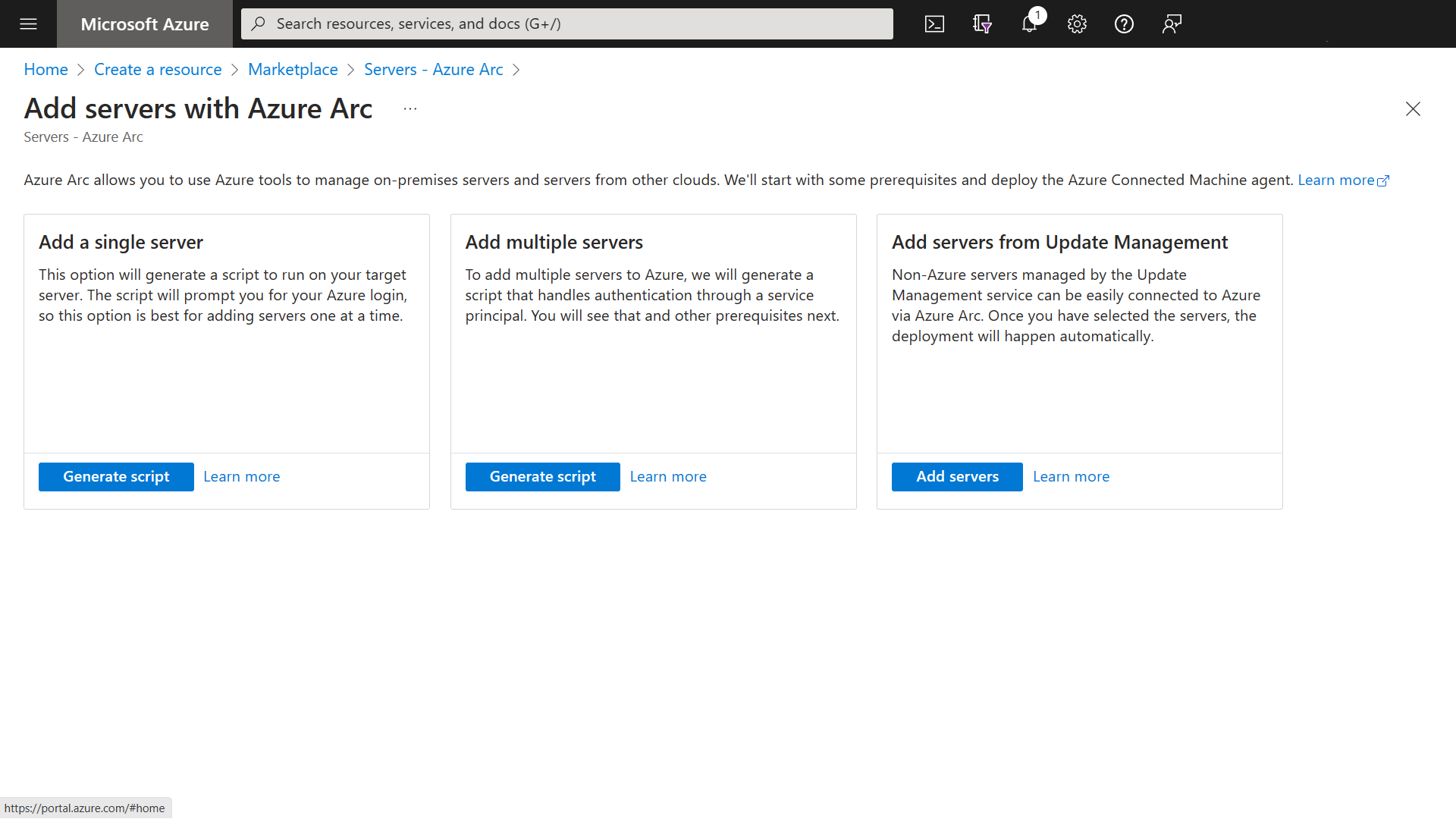

You can either register servers individually, through a bulk process or via Update Management. In this tutorial, we are going to select the first option and add servers with an interactive script.

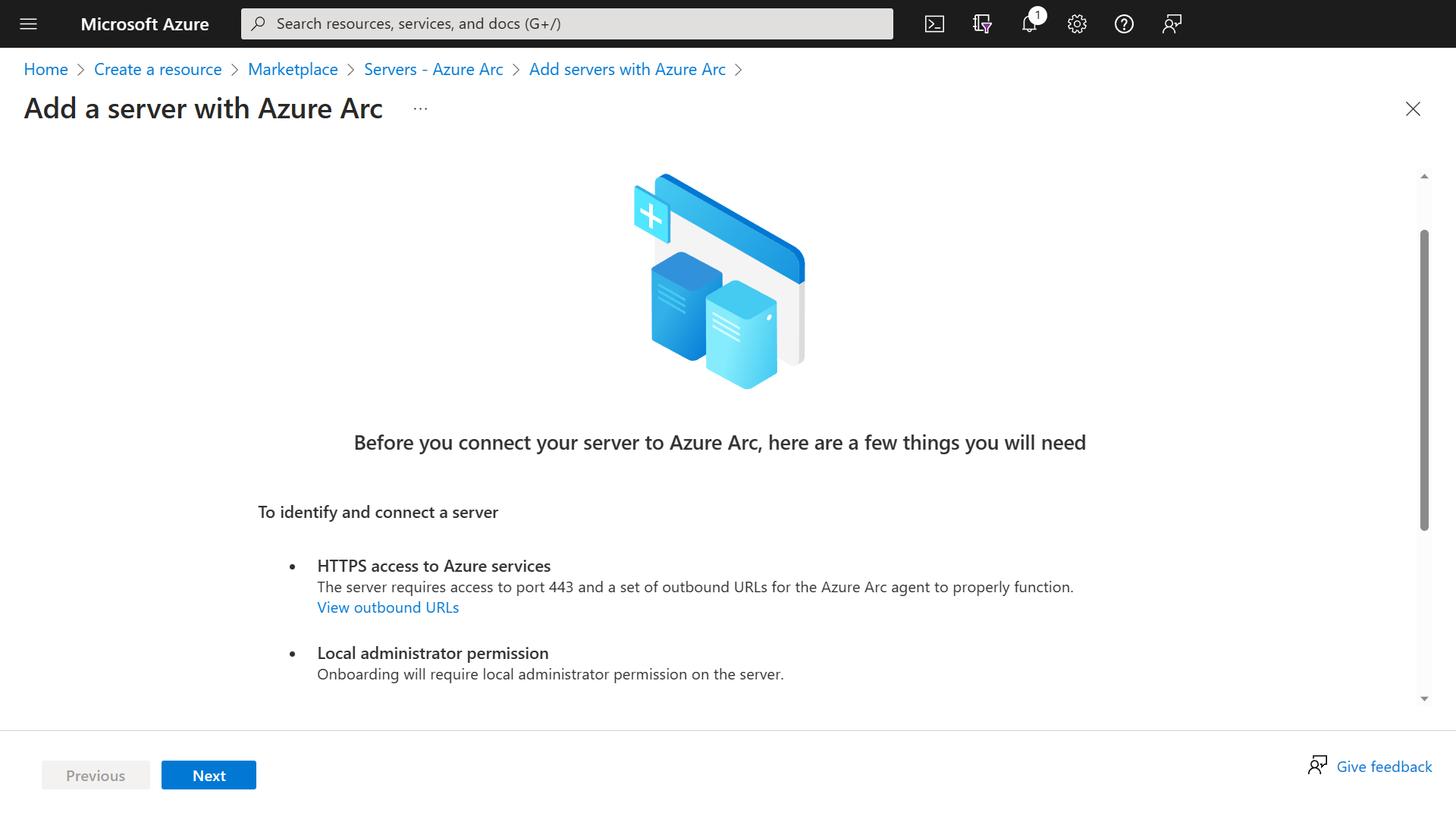

There are some prerequisites you need to meet, ensure you have met them before going any further.

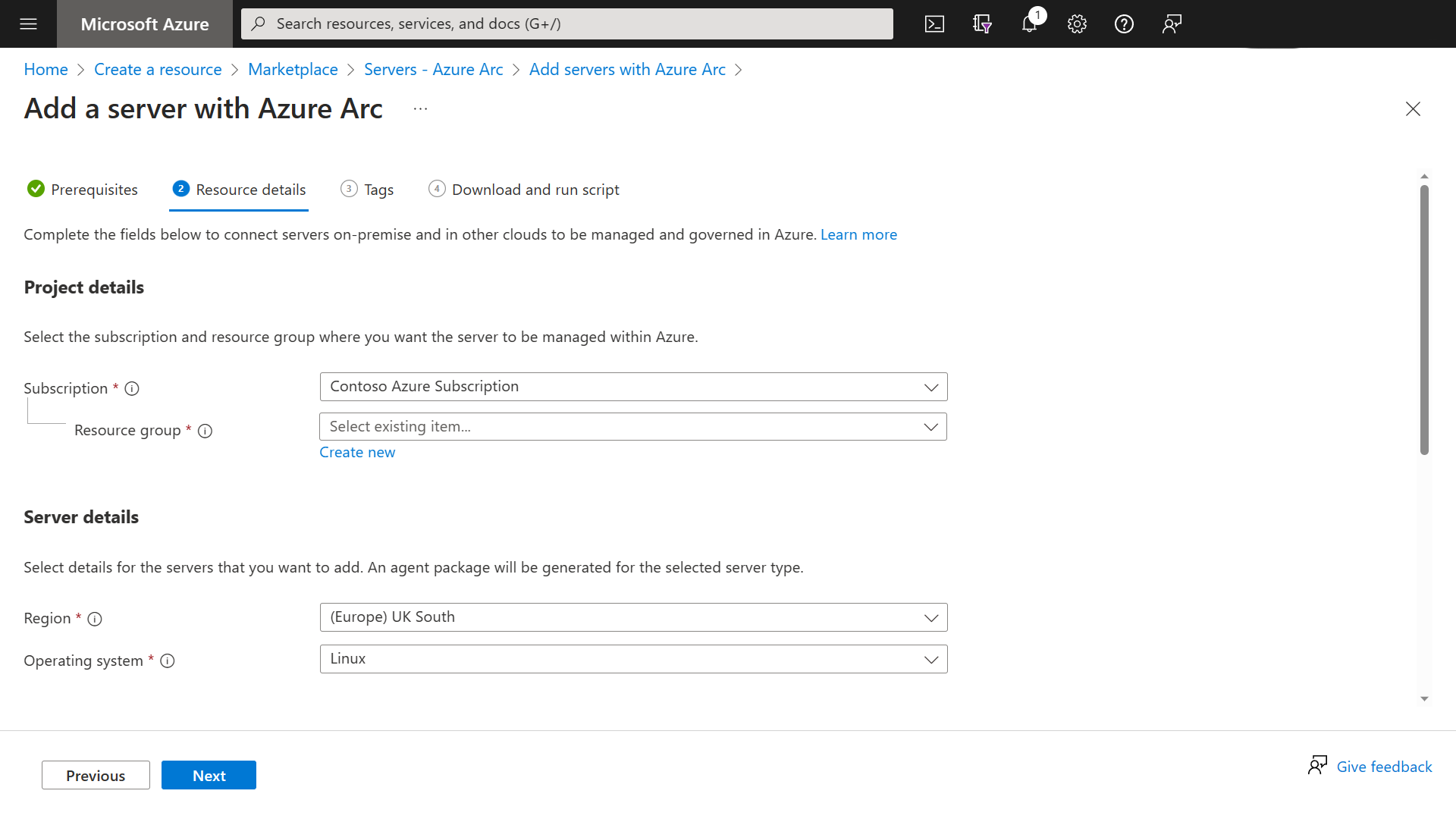

In the next step, you are asked to select some information. You are asked to select the subscription, resource group, operating system (OS), connectivity method and region. For this tutorial, ensure you select Linux as the OS and move to the next step.

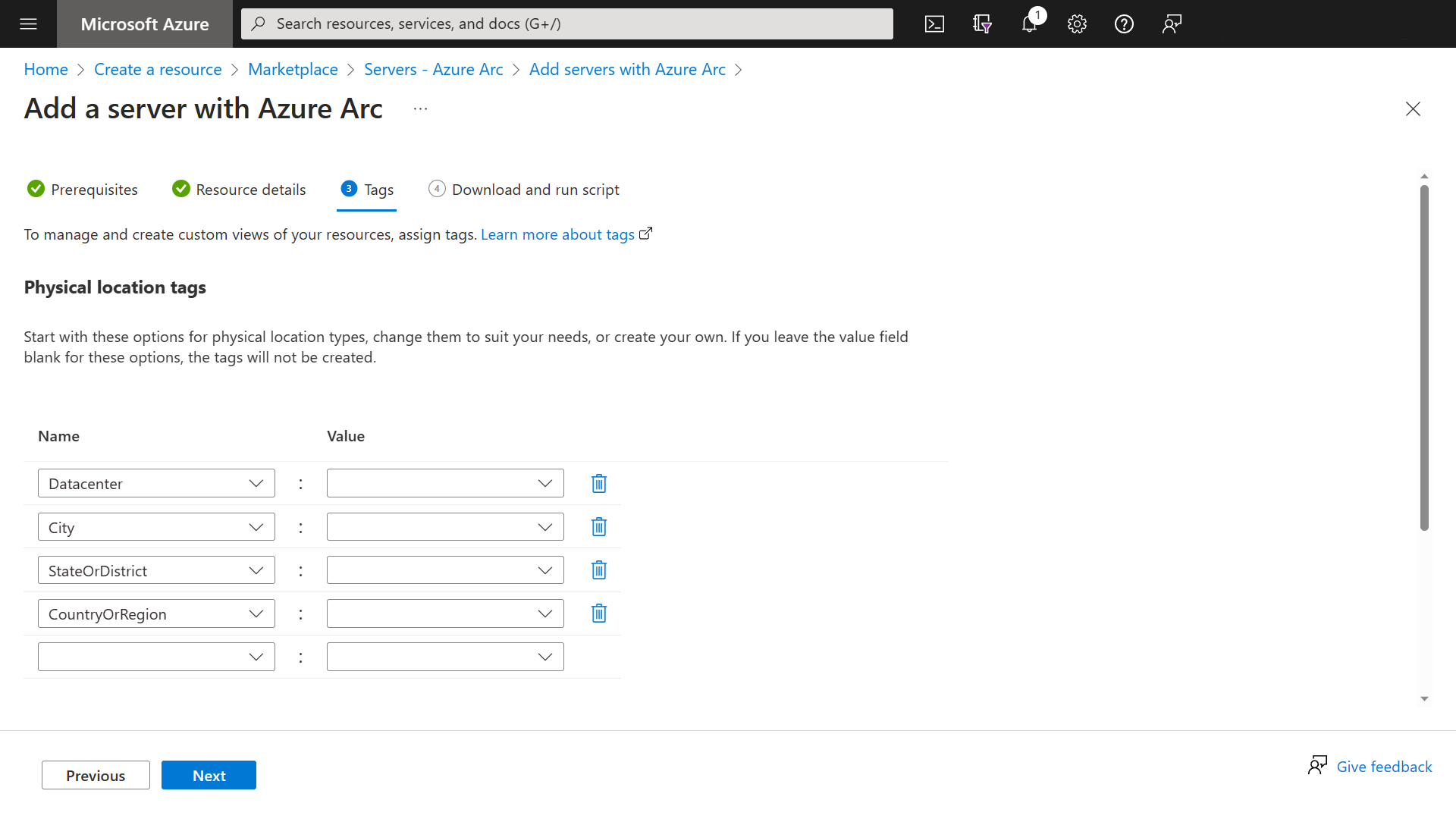

The next step is to populate any values for the suggested tags or you can create your own.

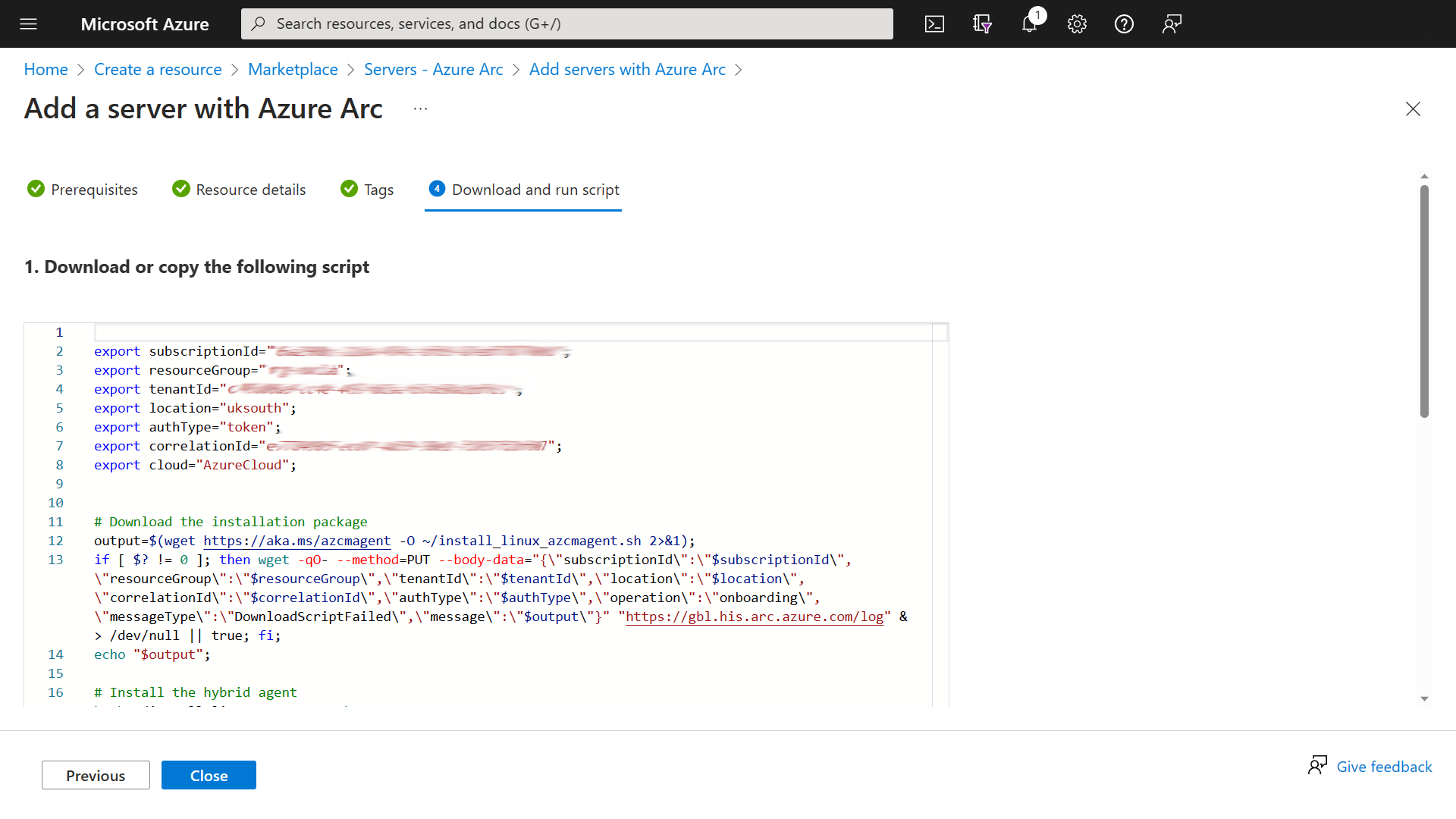

The last screen will show you the command to run on the Ubuntu server. Copy it and close the wizard.

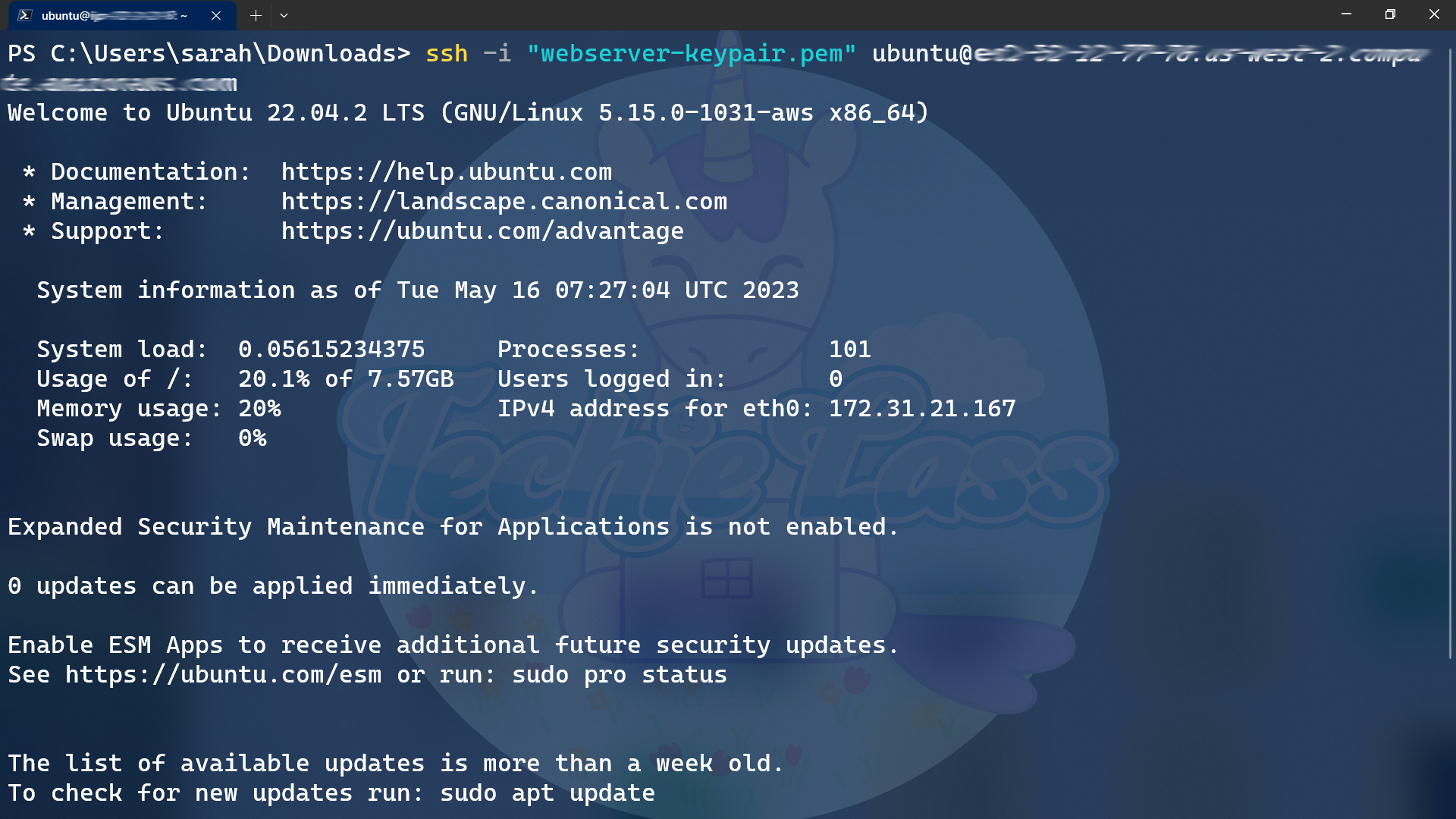

Now you have the script, SSH onto your Ubuntu machine. Paste the commands that were generated from the previous step.
During the installation you will be asked to go to https://microsoft.com/devicelogin to authenticate this new machine.
Within a few minutes, you will notice the registered machine in the resource group.
Applying a Policy to Registered Servers
The next process we want to follow is to apply a policy to find any registered servers that allow remote connections from accounts without passwords.
From the Azure Portal, search for Servers – Azure Arc.
Select the server you just onboarded.

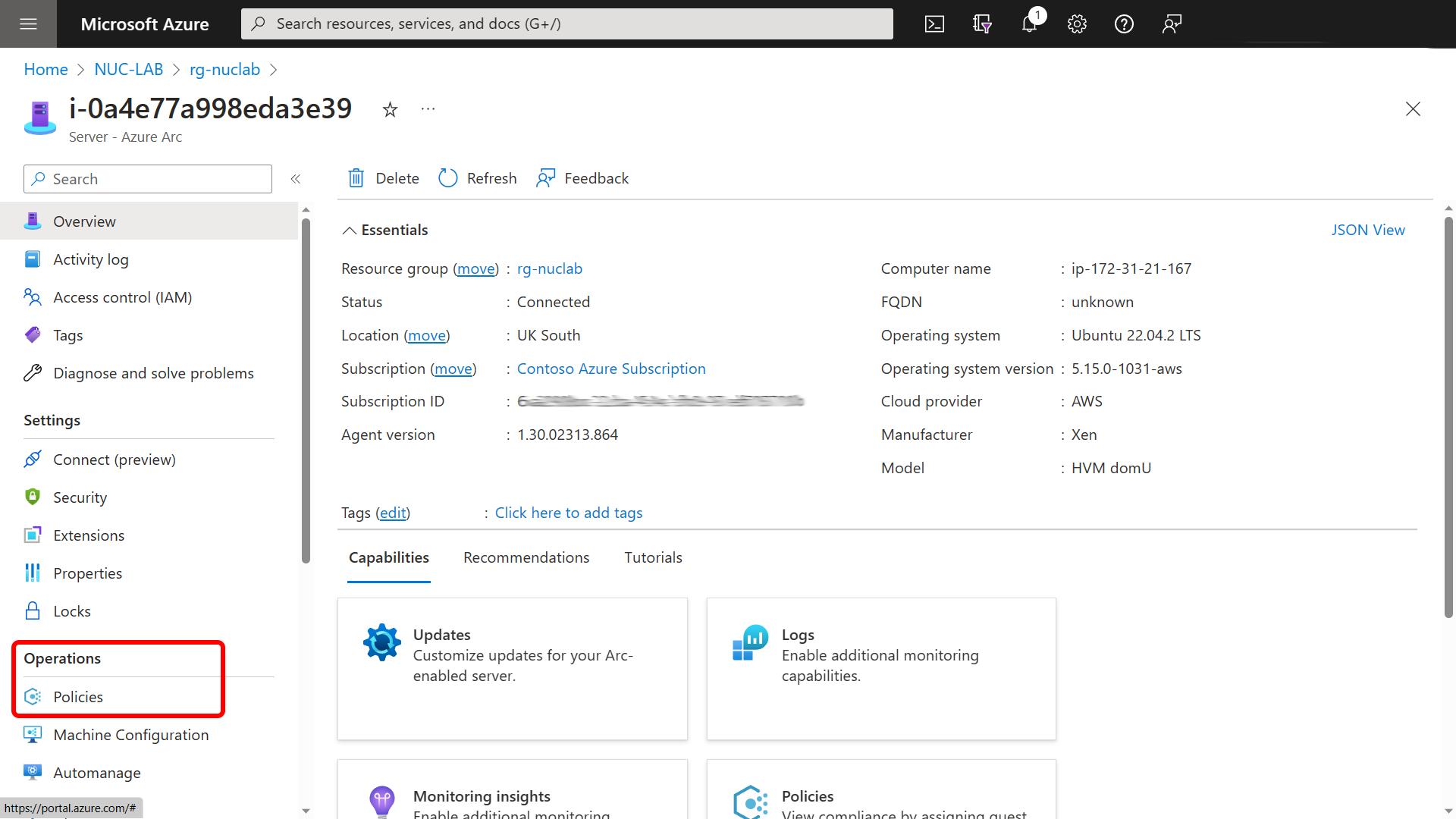

Down the left-hand side menu, scroll down to Operations and select Policies.

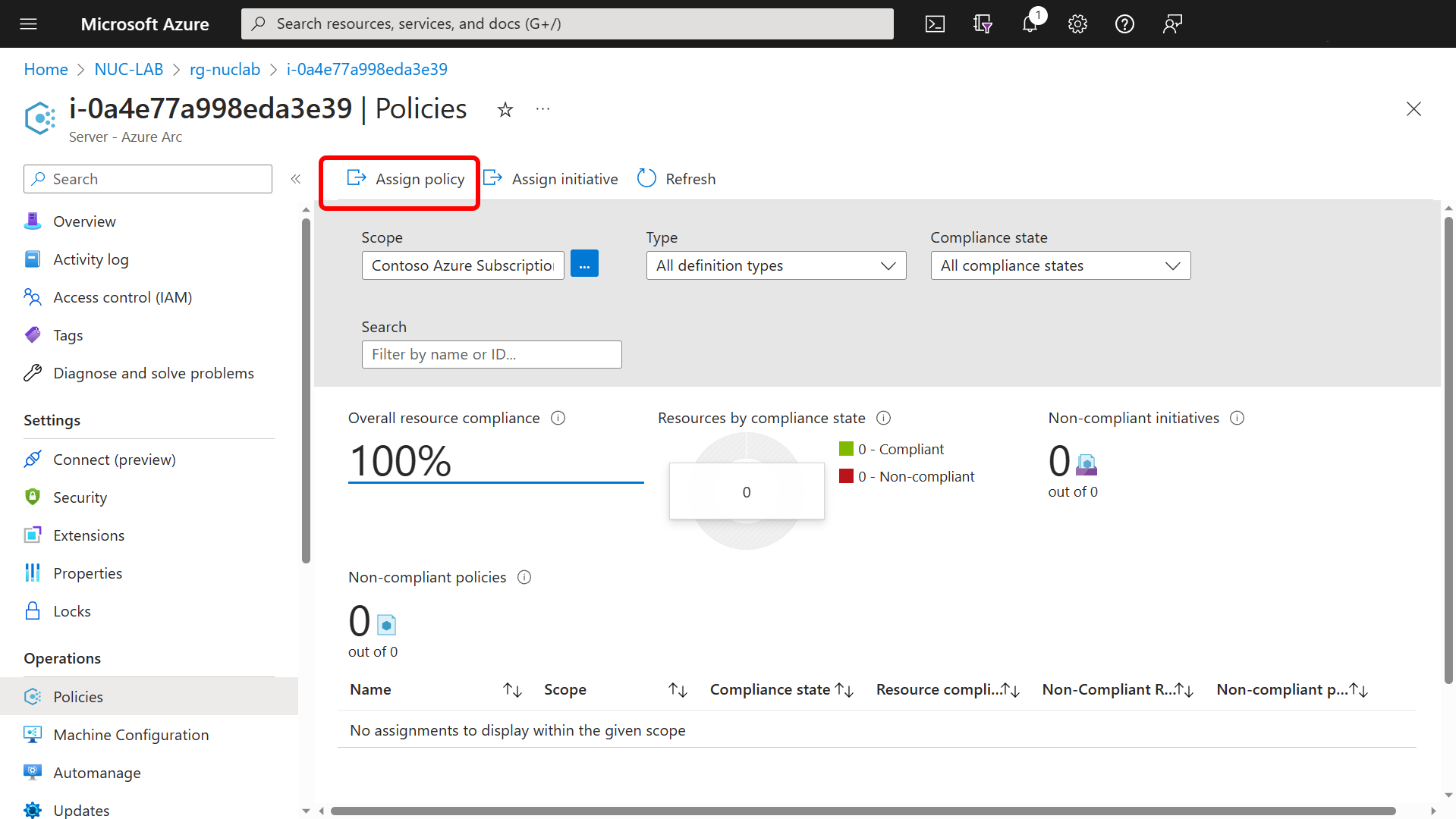

Click on assign policy.

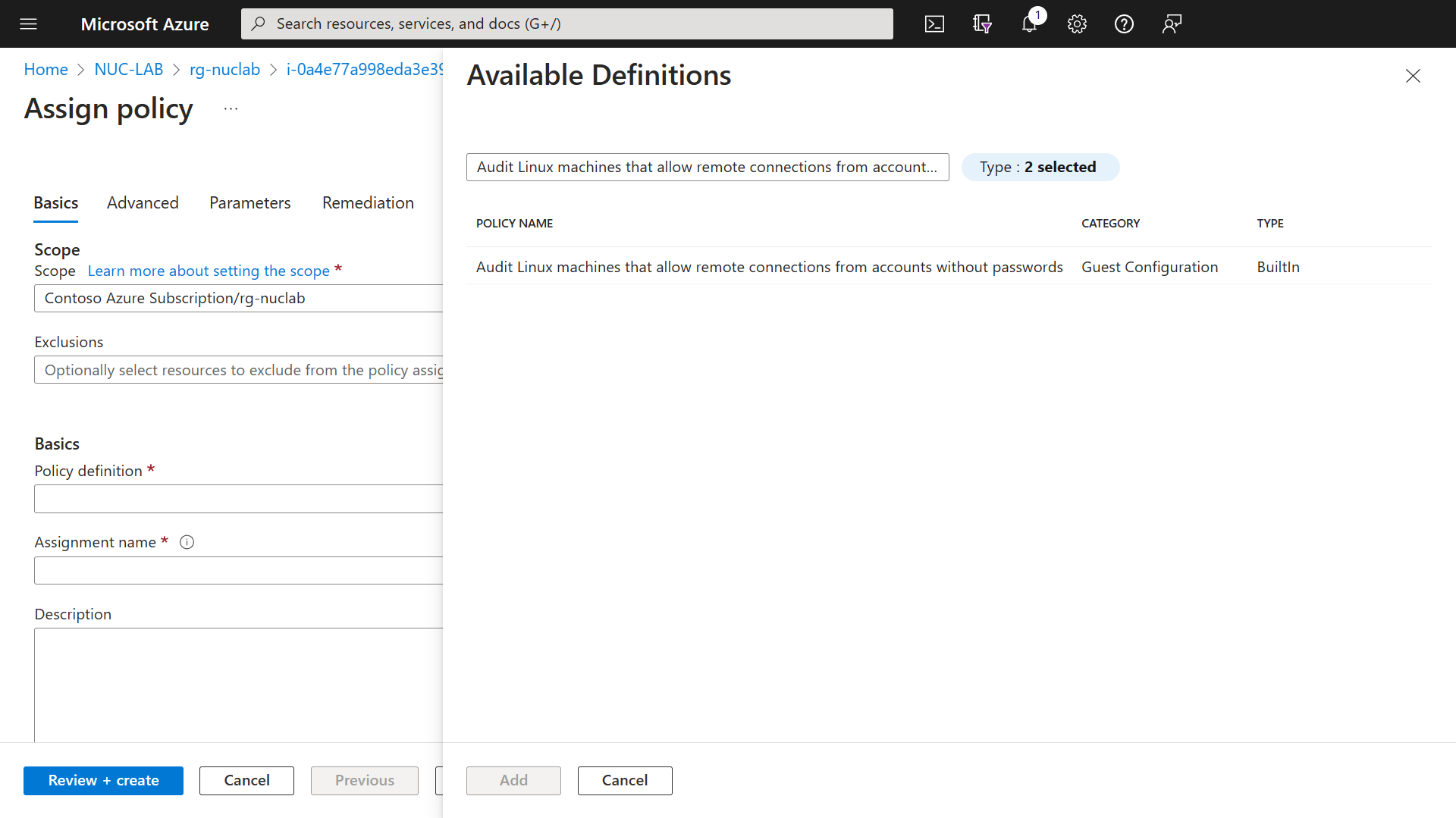

From the available policy definitions, select Audit Linux machines that allow remote connections from accounts without passwords.

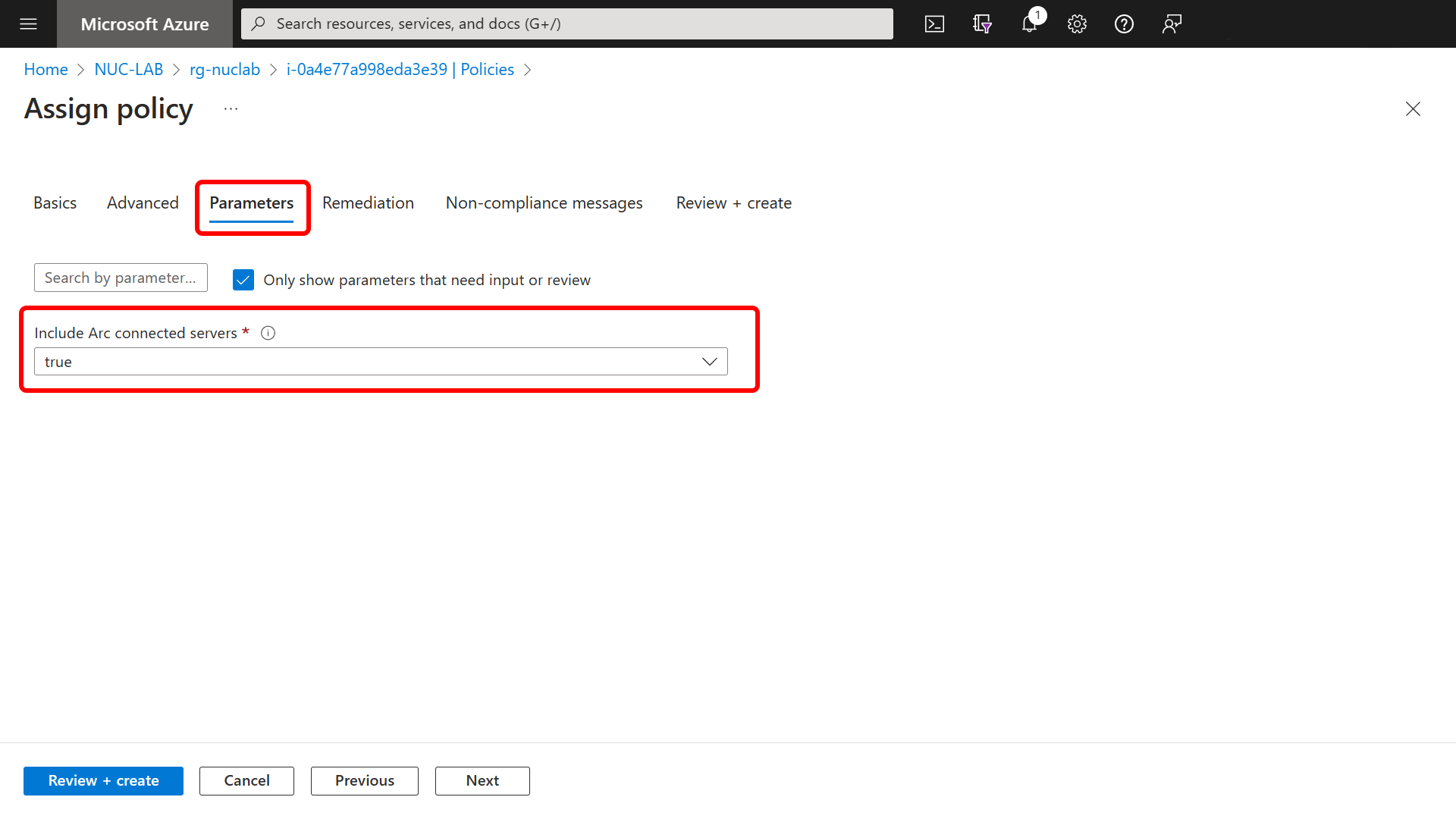

Walking through the wizard makes sure you select the option to Include Arc connected servers.

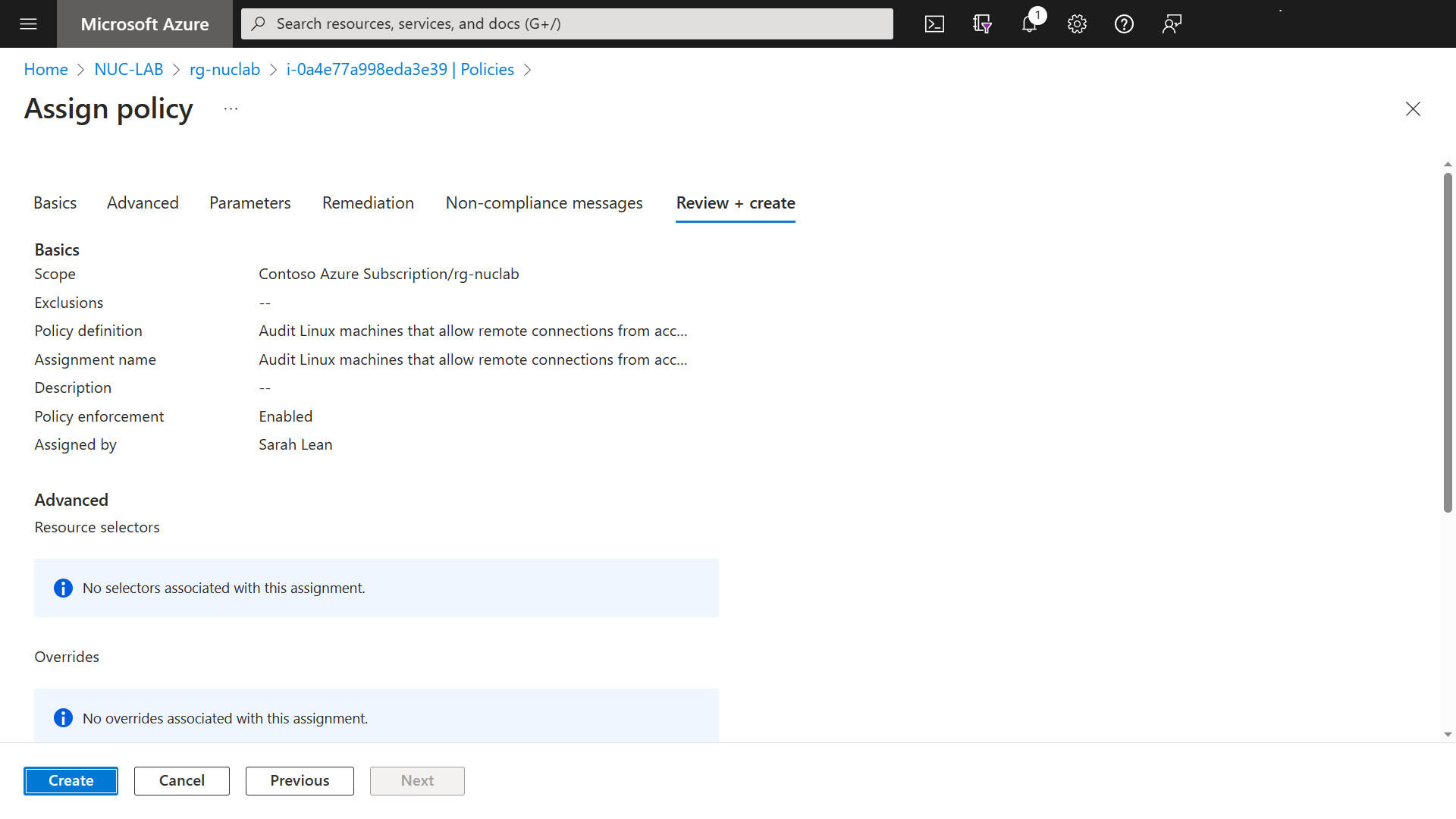

Within the next step, accept the defaults and create the policy.

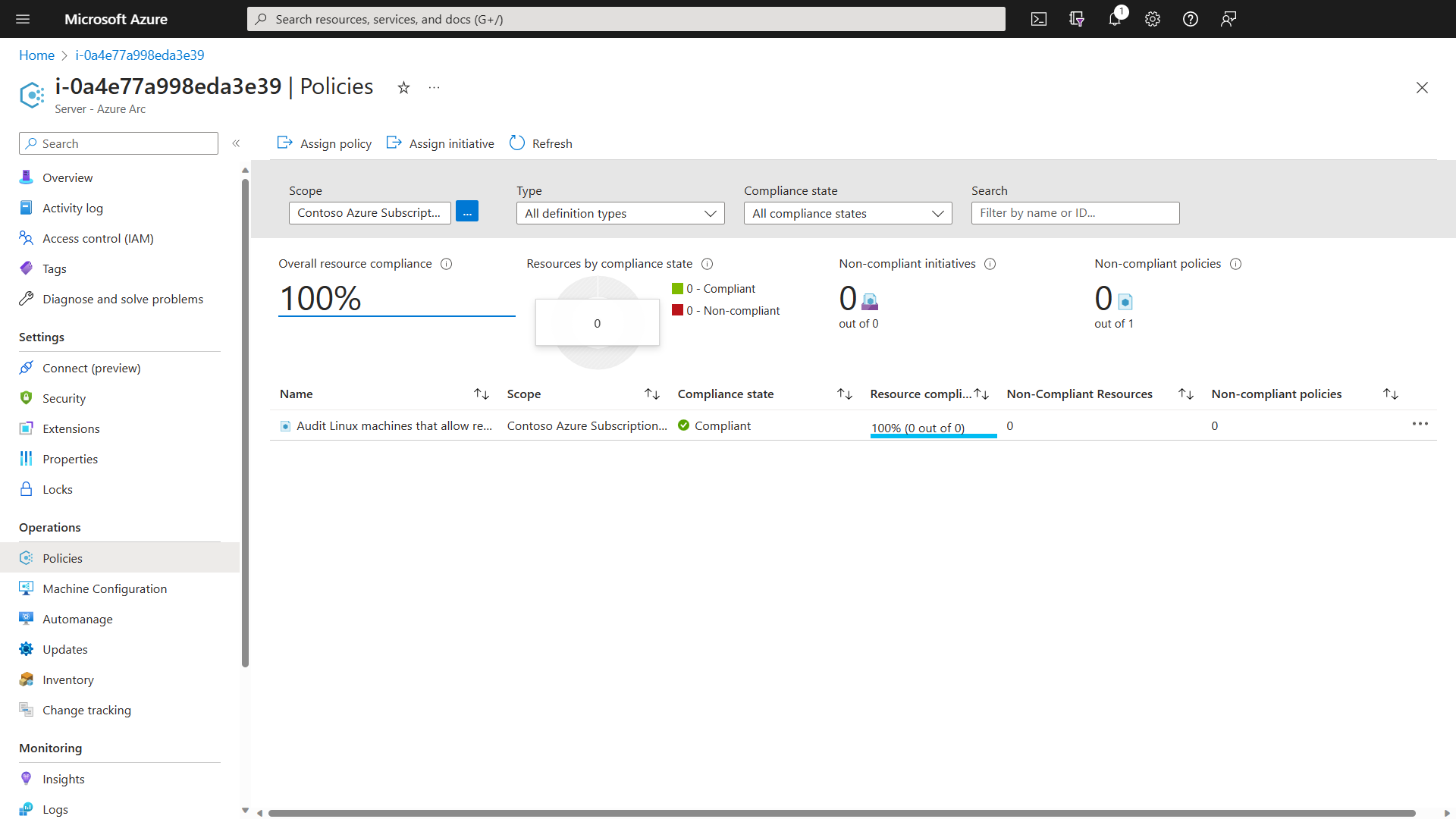

After a few minutes when you check the compliance dashboard, it will have updated with the results from the audit.
Well done! You have successfully onboarded a Linux server to Azure using Azure Arc and then assigned an Azure Policy!
